Classic APS CAK Fitting Help Needed.

[frank c]

I will be fitting this shortly and need some advice. I have the cast pipe and a new K&N filter, is there something else i need to fit it ?

Have seen a couple of pics and it looks like I'm maybe missing a part or two for connecting it.  Where does the pipe end with the bolt holes fit on to ?





cheers

[frank c]

Anyone seen one of these fitted ? What connects the CAK to where the airbox is ?

[STi_Bandit]

Dont Know if this helps mate. got an aps sitting on top of the waredrobe, diagram is for a new age but may give you an idea

APS Install Diagram

Bandit

[frank c]

Cheers for the help Bandit but i really need to know how and what i need to fit this to a Classic as that kit looks slightly different.



thanks.

[ally-b]

I will get you pics of my APS CAK install Frank - after Saturday - I'm in Mallorca just now lol [H]

Al.

[frank c]

I will get you pics of my APS CAK install Frank - after Saturday - I'm in Mallorca just now lol [H]

Al.



Good man Al.. [Y] I'm a wee bit confused as to what goes where and what else i might need to fit it.. [:$]

Oh.............and Mallorca sounds  [ip] Enjoy the rest of your holiday ma man.

[ally-b]

. . . I'm home []

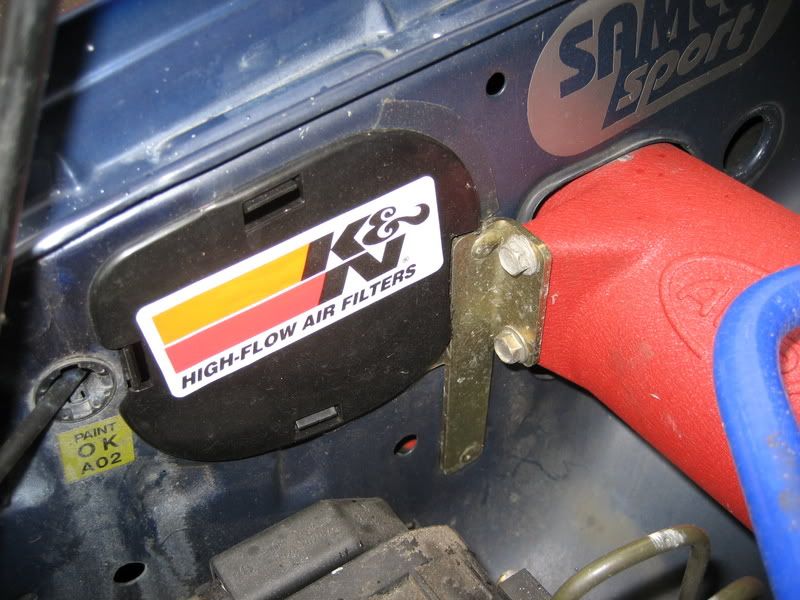

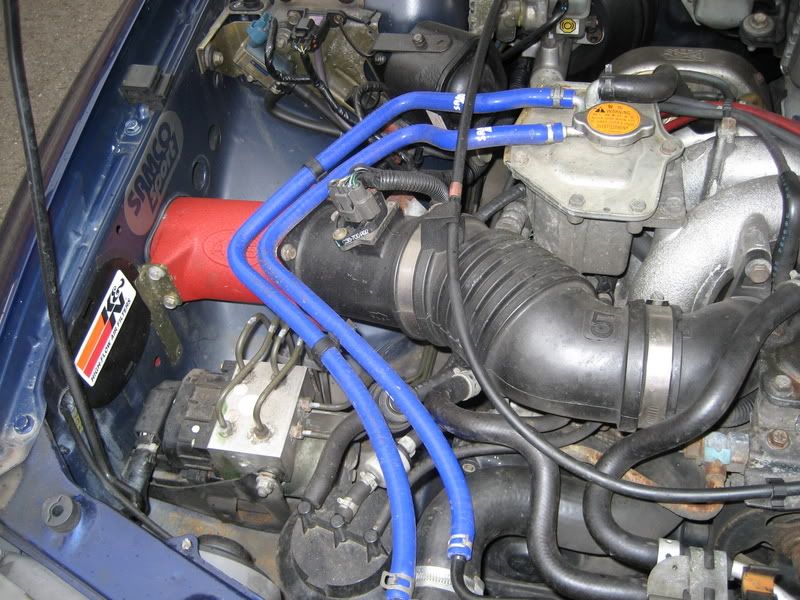

I hope these pics help [Y]

BTW.

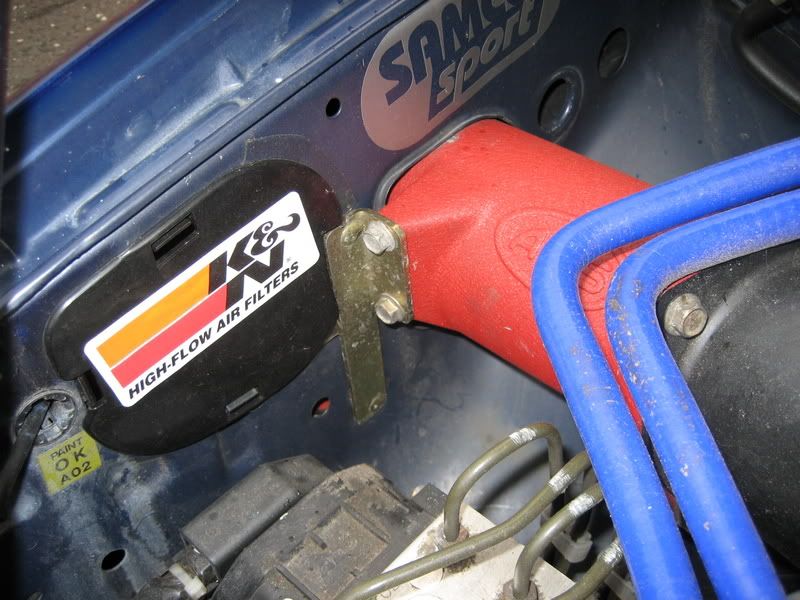

The plastic cover (with the K&N sticker) is a genuine Subaru part for a non-turbo Impreza .(Their airbox is roughly where our 'cooler sits so they have these covers where our air intake is) This cover costs about 7 quid and does a great job of keeping the hot air from the engine getting near the filter , ensuring that only cold air from the inner-wing is sooked in [H]

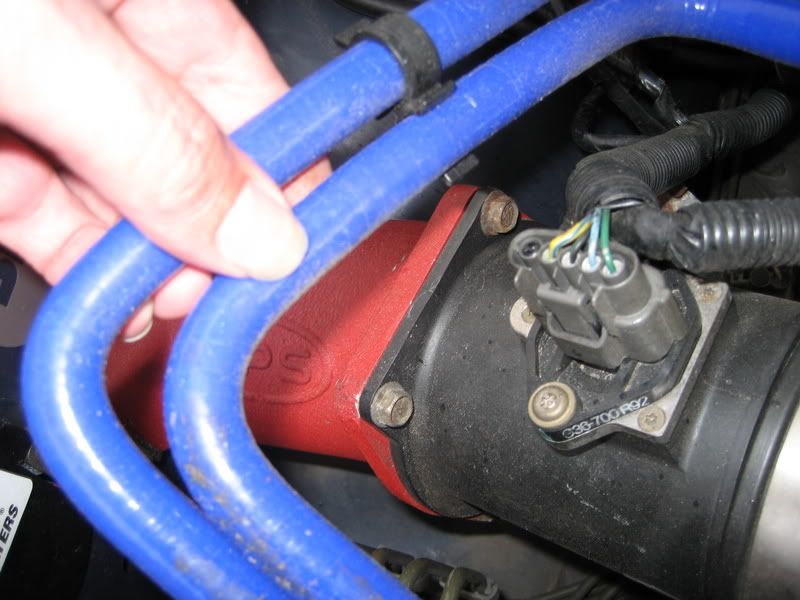

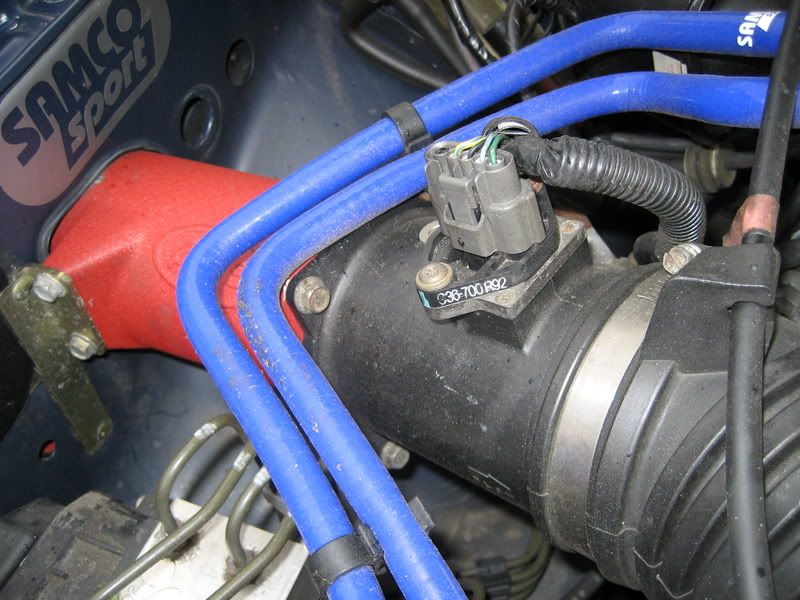

The MAF housing is rotated to suit the flange on the APS pipe .

Al.



[frank c]

PERFECT [Y][]

Just what i needed Al. The plastic cover looks alot tidier than the tape i've got in place at the moment.  I think i'll just ask for one of them the next time I'm passing the dealers.



Much appreciated Al ..[]
